Views: 0 Author: Site Editor Publish Time: 2026-04-01 Origin: Site
Transitioning a new product from development into commercial production changes everything. You leave basic container concepts behind. Instead, you must implement continuous, automated packaging solutions. Blister packaging perfectly bridges this gap between raw product handling and final consumer delivery. It involves a highly controlled, multi-stage mechanical operation. The process seamlessly forms a cavity, fills the product, and seals it. It maintains strict environmental and compliance barriers throughout the entire run.
This article deconstructs the complex operational workflow of Blister Packaging Machines. We aim to provide a robust technical evaluation framework. Production managers and procurement teams will find this guide highly actionable. You will learn exactly how mechanical sequences operate. We also explore how different substrates impact machine choice and review the criteria needed to source equipment or contract packaging partners.
The blister packaging process relies on four continuous automated steps: heating/forming, product feeding, sealing, and punching/die-cutting.
Equipment selection hinges primarily on the forming method: Thermoforming (heat-based, high-speed) versus Cold Forming (pressure-based, maximum barrier protection).
Integrating automated inline Quality Control (vision systems, leak testing) is non-negotiable for cGMP, FDA, or ISO 15378 compliance.
Choosing the right Blister Packaging Machines manufacturer requires auditing their tooling flexibility, changeover speed, and integration of emerging eco-friendly materials.
Understanding the mechanical reality of your production line helps clarify equipment footprint and operational sequencing. You can map out facility requirements better when you know exactly how each station functions. Modern equipment divides the workflow into four continuous, automated stages.
Step 1: Plastic/Foil Molding (The Forming Station)

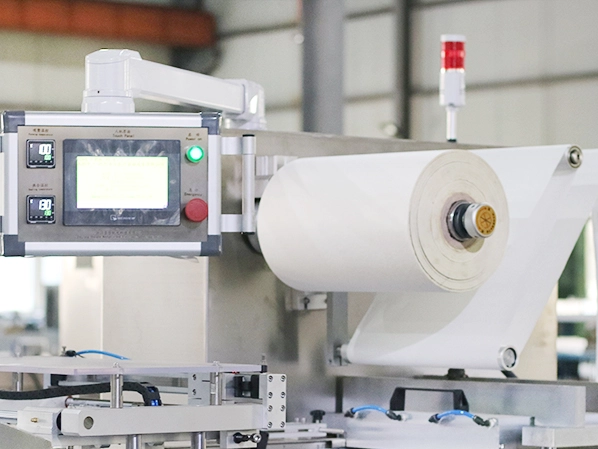

The operation begins by unwinding the forming film from a master reel. For thermoforming processes, the web passes over pre-heating plates. The heat softens the plastic substrate. Once pliable, the material enters the forming station. The machine applies compressed air or a vacuum to draw the film into the mold cavities. Consumer goods or medical devices often require deep cavities. In these scenarios, the machine uses "plug-assist" mechanisms. A physical plunger pushes the film deep into the mold before the vacuum takes over. This ensures uniform wall thickness and prevents material tearing.
Step 2: Precision Product Feeding
The newly formed web indexes forward into the filling station. Automated feeding systems must perfectly match the product state. Solid oral doses like tablets or capsules drop through dedicated vibrating tracks. Medical devices, vials, or syringes require a different approach. Machines use robotic pick-and-place arms for these delicate items. High-speed systems conduct inline weight checks and preliminary visual scans during this step. They ensure every cavity receives a product, completely preventing empty blister pockets from moving downstream.
Step 3: Sealing the Package
The filled web then meets the lidding foil. This backing material unrolls and covers the open cavities. The web enters the sealing station, where heat and pressure activate a heat-seal lacquer coated on the lidding foil. You face a critical trade-off here based on product sensitivity. Standard thermal pressing works well for most consumer goods and stable pharmaceuticals. However, heat-sensitive biologic drugs or certain active pharmaceutical ingredients (APIs) cannot survive thermal sealing. Operators must switch to ultrasonic sealing or cold-seal adhesives to protect these fragile products.
Step 4: Punching and Separation
Following the seal, the continuous web passes over cooling plates. Rapid cooling sets the adhesive and guarantees long-term seal integrity. The machine then indexes the web into the die-cutting station. Precision blades punch out the individual blister cards. The equipment routes the leftover waste material, known as the matrix, onto a separate reel for recycling or disposal. A conveyor belt catches the finished blister cards and transports them to secondary packaging stations like cartoners.
Buyers face a critical technical fork in the road when configuring a production line. Your choice of forming method dictates machine speed, footprint, and product shelf-life. You must base this decision entirely on product sensitivity and required throughput.
Forming Method | Mechanical Mechanism | Business Value | Operational Limitations |
|---|---|---|---|
Thermoforming | Uses precise heat and vacuum/pressure to mold plastic substrates (PVC, PVDC, PETG, COC). | Delivers high production speeds and lower material costs. Transparent cavities provide high product visibility, which improves patient adherence and retail appeal. | Inherently lower moisture and oxygen barriers compared to full aluminum packaging. |
Cold Forming (Alu-Alu) | Uses mechanical metal stamps to forcefully press aluminum-based laminates into cavities without any heat. | Provides a near 100% barrier against water, oxygen, and UV light. Absolutely essential for highly sensitive active pharmaceutical ingredients (APIs). | Opaque material prevents visual product inspection by the consumer. Slower machine speeds and requires a significantly larger packaging footprint. |
Thermoforming dominates the consumer goods and standard pharmaceutical markets. The process heats thermoplastics just enough to make them pliable. It excels in high-volume environments where speed is critical. Consumers appreciate the clear plastic cavities. They can visually inspect the product before purchase. For medical patients, transparent packaging directly improves medication adherence. They can easily see if they took their daily dose. However, standard plastics naturally allow minute amounts of gas transmission. This makes thermoforming unsuitable for highly unstable compounds.
Cold forming provides the ultimate environmental barrier. The machine mechanically stamps a heavy aluminum laminate into a cavity shape. It uses zero heat during the forming stage. This creates a dense, impenetrable shield against moisture, oxygen, and light. Pharmaceutical companies rely on Alu-Alu packaging for sensitive drugs that would degrade in standard plastic. The trade-off is efficiency. Aluminum cannot stretch like heated plastic. You need a much larger piece of foil to create a single cavity. This drastically increases your material usage and requires a larger machine footprint. The opaque nature of the foil also means patients cannot see the pill inside the package.
Your choice of substrates directly impacts machine performance. Running the wrong material can cause jammed webs, melted plastic, or failed seals. You must address material limitations and sustainability trends before purchasing equipment.
Polyvinyl Chloride (PVC) serves as the industry baseline. It is highly cost-effective and thermoforms beautifully. However, basic PVC offers poor environmental barriers. To solve this without transitioning to bulky cold-forming equipment, manufacturers use coated plastics. Applying Polyvinylidene Chloride (PVDC) or Polychlorotrifluoroethylene (PCTFE) coatings to a PVC base multiplies moisture and oxygen resistance. These advanced laminates deliver a 5x to 10x improvement in barrier protection. Your machine must have precision heating controls to manage these multi-layer films without causing delamination or warping.
The backing material defines the consumer experience. Traditional pharmaceutical packs use hard aluminum Push-Through Packs (PTP). A simple press breaks the foil. However, modern regulatory standards often require Child-Resistant (CR) packaging. This forces a shift away from simple push-through designs. You must use paper/foil laminates. These require peelable or peel-push combinations. Consumers must peel away a paper layer before pushing the product through the foil. Your sealing station must apply the exact right amount of pressure to bond these multi-layer lidding films securely without crushing the product.
Sustainability mandates are forcing brands away from traditional mixed plastics. You must assess if your existing equipment can handle emerging eco-friendly substrates. Many companies now request single-material (mono-material) plastics or All-Paper blister packaging. Transitioning to these materials carries significant implementation risk. Running paper or recycled PET often requires upgraded heat-seal controls. If your sealing temperature fluctuates, paper backing will scorch. Furthermore, standard cutting blades struggle with fibrous materials. You typically need customized die-cutting stations to prevent frayed edges and ensure clean separation.
Regulatory agencies demand flawless execution. You must prove your process maintains strict QA standards. Integrating automated inspection technology directly into the machine workflow reduces regulatory risk and prevents costly recalls.
You cannot rely on manual human inspection at modern production speeds. Facilities deploy high-speed cameras immediately before the sealing station. These sophisticated vision systems scan the open web in milliseconds. They detect broken tablets, wrong-color capsules, cross-contamination, or completely empty cavities. If the camera spots an error, it flags that specific section of the web. Downstream, automated reject gates activate. They divert the defective cards into a secure reject bin without ever stopping the continuous motion of the machine. This maximizes uptime while ensuring 100% inspection.
A blister pack is useless if the seal fails. You must ensure the heat-seal lacquer bonds seamlessly with the forming web across every millimeter of the package. Facilities utilize strict compliance testing protocols to verify this bond. Blue dye leak testing remains the standard destructive method. Technicians submerge finished packs in a vacuum chamber filled with blue dye. If a seal is weak, the vacuum forces dye into the cavity. While effective, this destroys the product. Emerging non-destructive ultrasonic scanning provides a better alternative. It checks seal density in real-time, allowing you to catch drifting sealing temperatures before they cause mass failures.
Global pharmaceutical mandates require rigorous track-and-trace capabilities. Your equipment must integrate inline printing systems. These high-speed printers apply lot numbers, precise expiration dates, and 2D matrix barcodes directly onto the lidding foil. Scanners immediately read these codes to verify print quality. This localized serialization ensures you remain compliant with global supply chain security standards. It allows rapid identification and isolation of specific batches during a product recall.
Procuring capital equipment is a high-stakes decision. You need a vendor-neutral evaluation framework to cut through marketing claims. Here is how you evaluate potential equipment suppliers.
Multi-product facilities live and die by their changeover times. You must evaluate the time and labor required to swap molds for different product sizes. Traditional machines require specialized mechanics and hours of downtime to change forming plates and sealing dies. Modern systems utilize tool-less changeovers. Operators can swap format parts using simple quick-release levers. Prioritize machines offering tool-less setups. They drastically improve Overall Equipment Effectiveness (OEE) and allow you to run smaller, more profitable batches.
You must match the machine's architecture to your volume requirements. R&D or clinical trial machines focus on low-volume output and maximum flexibility. They use flat-plate forming and sealing. Conversely, commercial-scale rotary machines focus on high-speed, dedicated runs. They utilize continuous rotary sealing drums capable of producing hundreds of blisters per minute. Do not buy a high-speed rotary machine if you frequently run small, highly customized product batches.
A reputable Blister Packaging Machines manufacturer proves their worth before the machine ever leaves their floor. They must provide transparent Factory Acceptance Testing (FAT) protocols. You should run your actual materials and products on the machine at their facility to verify performance. Furthermore, they must supply robust documentation. Installation Qualification, Operational Qualification, and Performance Qualification (IQ/OQ/PQ) documents are mandatory for cGMP validation. Finally, verify their localized technical support. An overseas manufacturer is useless if you wait two weeks for a critical replacement part.
No packaging machine operates in isolation. You must evaluate a manufacturer's ability to integrate specific upstream and downstream equipment. Can they sync their outfeed with your existing cartoning machines? Can they integrate specialized liquid dosers for unit-dose syrups? For retail consumer goods, can they engineer custom peg-hole punches into the die-cutting station for Point-of-Purchase (POP) displays? The right partner customizes the machine to fit your holistic production environment.
Blister packaging represents a complex balancing act between material science, precise mechanical engineering, and rigorous regulatory compliance. You cannot view it as a simple container-filling exercise. The right technology minimizes downtime, ensures barrier integrity, and scales seamlessly with your production demands.
Your immediate next steps involve internal alignment. First, clearly define your environmental barrier requirements. Second, establish your exact throughput goals and batch frequencies. Do this before requesting technical datasheets or tooling estimates from any manufacturer. A clear operational baseline ensures you procure equipment perfectly matched to your commercial reality.
A: Yes, some advanced machines are "thermo-cold" hybrid models. They allow operators to switch out tooling stations based on the specific batch requirements. However, these dual-purpose machines require a significantly larger upfront capital investment.
A: For consumer goods, heavy-gauge clamshells often cause opening difficulty. Modern tooling can add precision micro-perforations to the plastic. Alternatively, brands transition to trapped blister (cardboard-backed) designs. These improve the user experience while maintaining robust physical theft deterrence.
A: Costs vary based on the "number up" (how many cavities form per cycle) and material complexity. Contract packagers mitigate this for smaller brands by using "combo-runs" (shared standardized tooling). Buying dedicated machinery, however, requires an upfront custom mold investment.
