Evaluating blister packaging equipment goes far beyond looking at output speeds. You are choosing a critical component of a highly regulated packaging line. Every minute of downtime, seal integrity failure, or non-compliance directly impacts your bottom-line profitability. Engineers and procurement managers face intense daily pressure. You must balance varying dosage forms and stringent GMP requirements. You also face the constant demand for high Overall Equipment Effectiveness (OEE). This guide provides a pragmatic, decision-stage framework. We strip away the marketing fluff to examine the actual mechanics driving these systems. You will learn how to evaluate core structural differences, such as platen versus rotary designs. We also cover how material choices dictate machine capabilities. We identify where typical seal failures originate on the shop floor. By the end, you will know exactly how to select equipment that matches your actual production realities. You can then secure your packaging line's long-term reliability.
Motion vs. Output: Rotary (roller) systems excel in continuous, high-speed output for uniform products, while platen (flat-plate) systems offer the dwell-time and precision required for complex cavities and frequent format changes.
Barrier Realities: Material choice dictates machine capability; cold forming offers perfect moisture/oxygen barriers but demands a larger blister footprint due to forming limitations.
Failure Realities: Most heat-seal failures stem from web misalignment or product dust accumulation, not simply "inadequate temperature."
Vendor Selection: A reliable Blister Packaging Machines manufacturer is defined by their documentation (IQ/OQ/PQ), hygienic design, and willingness to test the "hardest-to-handle" product prior to purchase.
Understanding equipment mechanics requires looking past theoretical operation. You must view the machine through a troubleshooting and quality-control lens. Operators routinely face specific mechanical challenges across the four primary process stages.

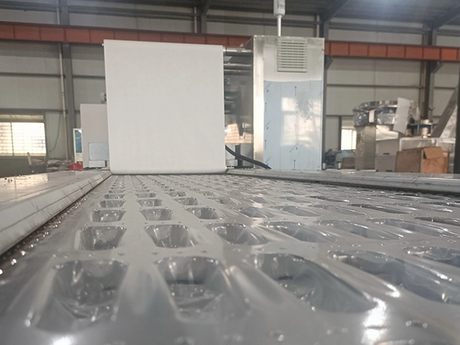

The first operational phase creates the cavity web. Machines use compressed air and vacuum for thermoforming plastics. They use physical stamping for cold-forming aluminum. Real-world troubleshooting often centers on cavity depth. If you form deep cavities without a "plug-assist" mechanism, the web stretches too thin. This thinning compromises the barrier integrity at the corners. We frequently see micro-cracks form in these stressed zones. Proper pneumatic timing and mold design prevent this critical failure.
Next, the machine loads the product into the formed web. Universal brush or planetary feeders handle standard tablets efficiently. Conversely, dedicated vibratory or capsule-orienting tubes manage complex shapes. Product friability poses a massive operational risk here. If the feeding system handles tablets too aggressively, it generates dust. This dust settles directly onto the sealing web. Dust contamination remains the primary culprit for micro-leaks. It physically prevents the lidding foil from adhering properly to the base material.

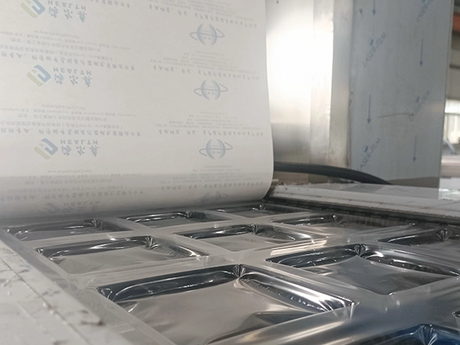

The sealing station mates the lidding foil to the formed web. Operators often make a critical mistake during this phase. When they spot a bad seal, they simply turn up the heat. High temperatures often cause film distortion and shrink the web. Effective sealing requires a perfect balance. You need the right temperature, mechanical pressure, and machine dwell time. Focus on proper tooling alignment and uniform pressure distribution. Changing temperature alone rarely fixes fundamental alignment issues.
Precision indexing drives the web through perforation and die-cutting. You must cut the final cards accurately to avoid destroying cavities. However, mechanical cutting represents only half the battle. Integrated vision systems remain an absolute necessity. High-speed cameras must inspect the web before the cutting station. They detect empty cavities, broken tablets, and microscopic pinholes. Catching these defects early prevents compromised cards from reaching the downstream cartoning equipment.
Machine architecture heavily depends on your selected packaging materials. You must align your Blister Packaging Machines with the specific barrier properties your product requires.
Thermoforming heats a plastic film until pliable, then molds it. This method delivers high clarity and keeps operational costs lower. It works perfectly for standard oral solid doses. However, barrier properties vary wildly based on the exact material. Standard 250μm PVC provides a Water Vapor Transmission Rate (WVTR) of roughly 3.0 g/m²/day. If your product needs tighter protection, you must upgrade the film. Applying PCTFE or ultra-high PVDC coatings drops the WVTR below 0.10 g/m²/day. Your equipment must feature heating zones capable of processing these advanced, multi-layer structures without causing delamination.
Cold forming relies purely on mechanical force. The machine presses an aluminum-based laminate into the mold without heat. You need this method for highly sensitive active pharmaceutical ingredients (APIs). Cold-formed Alu-Alu packs offer near-zero WVTR and Oxygen Transmission Rate (OTR). They also provide complete light protection. Keep a major engineering constraint in mind here. You cannot stretch cold-formed aluminum into sharp 90-degree angles without tearing the foil. Tooling must accommodate shallower, sloping cavity walls. As a result, Alu-Alu packaging requires a significantly larger overall blister card size compared to thermoformed equivalents.
Selecting the right motion mechanics dictates your entire production strategy. You must choose between intermittent platen systems and continuous rotary systems based on your batch sizes and product types.
Platen systems operate using intermittent motion. The web stops momentarily during the sealing phase. This pause provides longer dwell times, ensuring highly uniform pressure and temperature distribution. We recommend platen systems for large, deep, or highly complex formats. They handle ampoules, vials, and peel-push lidding exceptionally well. If your facility requires frequent tooling changeovers, multi-product handling, and smaller batch runs, a flat-plate machine serves as your best fit.

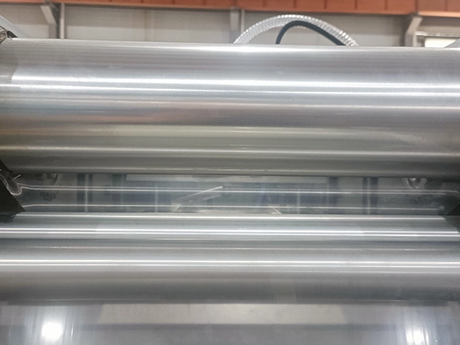

Rotary systems utilize continuous motion. The web never stops moving forward. Two spinning rollers seal the lidding foil to the base web. This design achieves massive throughput. Top-tier machines easily exceed 1,000 blisters per minute. They often use cooled index rollers to prevent film shrinkage at high speeds. Choose rotary machines for dedicated lines producing massive volumes of standard-sized tablets. However, they carry strict limitations. You cannot use them for cavities wider than 16mm or very deep draws. The film bends across the roller, causing severe distortion on larger cavities.
Feature | Platen-Style (Flat-Plate) | Rotary-Style (Roller) |
|---|---|---|
Web Motion | Intermittent (starts and stops) | Continuous (never stops) |
Production Speed | Moderate (ideal for small/medium batches) | Extremely High (ideal for mass production) |
Cavity Size Limits | Excellent for deep draws, large vials, and complex shapes | Limited. Unsuitable for cavities wider than ~16mm |
Dwell Time & Pressure | High and uniform. Exceptional seal integrity | Short dwell time. Requires precise temperature control |
Format Changeover | Generally faster and highly flexible | Often requires longer setup times for complex rollers |
To separate standard equipment from high-performance systems, you need a skeptical buyer's perspective. Evaluate machines based on harsh operational realities rather than glossy brochures.
Nominal Speed vs. Actual OEE: Manufacturers often advertise a maximum rated speed. Treat this number as a theoretical ceiling. Your actual throughput depends heavily on changeover times, cleaning ease, and integration pauses. Always calculate expected outputs based on OEE, not mechanical limits.
Hygienic Design (cGMP Compliance): Look closely at the machine frame. The best systems use cantilevered balcony designs. This architecture physically separates the drive mechanics at the back from the packaging zones at the front. It eliminates hidden blind spots where product dust accumulates, thus preventing cross-contamination.
Vision and Rejection Systems: Modern lines demand flawless quality control. Ensure the machine architecture natively supports high-speed camera integration. It must also feature automated shift-register rejection. This tracking logic ensures the machine accurately ejects defective individual packs at the discharge station without stopping the entire line.
Downstream Integration Ready: A blister line does not operate in isolation. It must synchronize seamlessly with end-of-line equipment. Verify that the control systems communicate smoothly with downstream cartoners, inline weight checkers, and case packers to prevent costly bottlenecking.
Sourcing capital equipment requires strict vendor evaluation. A reliable Blister Packaging Machines manufacturer acts as a technical partner, not just a hardware supplier. Use these specific criteria to audit potential equipment builders.
Demand Proof of Concept: Never accept Factory Acceptance Testing (FAT) using only standard placebo tooling. A trustworthy manufacturer will agree to test your most friable, difficult-to-handle product. This test proves their feeding systems can handle real-world challenges without generating excessive dust or causing jams.
Validation Documentation: In regulated industries, paperwork matters just as much as steel. Assess the vendor's ability to provide comprehensive Installation Qualification (IQ), Operational Qualification (OQ), and Performance Qualification (PQ) documentation. You absolutely need these protocols to satisfy strict regulatory audits.
Tooling Agility: Production schedules change rapidly. Evaluate the manufacturer's lead times for custom CNC replacement molds. Ask about their support for rapid, tool-less changeover designs. Fast format changes keep your OEE high and reduce your dependency on specialized maintenance technicians.
Finalizing your packaging line strategy requires looking beyond basic output numbers. Keep these key action steps in mind as you move forward. First, remember that the optimal machine perfectly matches your specific material needs, product mix, and format changeover frequency. It is rarely just the fastest model on the floor.
Next, finalize your material specifications early. Decide if you strictly need thermoforming plastics or if your API requires the absolute barrier of cold-formed aluminum. Establish your worst-case product scenario. Identify your dustiest tablet or most complex capsule shape. Finally, bring these exact constraints to your chosen equipment vendor. Initiate your Request for Quotations (RFQs) only after defining these parameters clearly.
A: Strip packaging uses two continuous webs of flexible film sealed around the product. This creates a pouch-like strip. It offers superior moisture protection but consumes significantly more material. Blister machines use a rigid formed tray and a flat lidding foil. They offer better physical protection and a lower cost per dose.
A: The sealing temperature is usually set around 160°C. However, effective sealing relies on a triad of temperature, mechanical pressure, and machine dwell time. Temperature alone cannot fix a bad seal caused by misalignment or inadequate pressure.
A: Historically, they remain difficult to recycle due to the bonded multi-layer structure of plastics and aluminum. However, modern equipment is increasingly adapting to process mono-material films, like all-PET or all-PP. This shift helps manufacturers meet emerging ESG and recyclability mandates.
